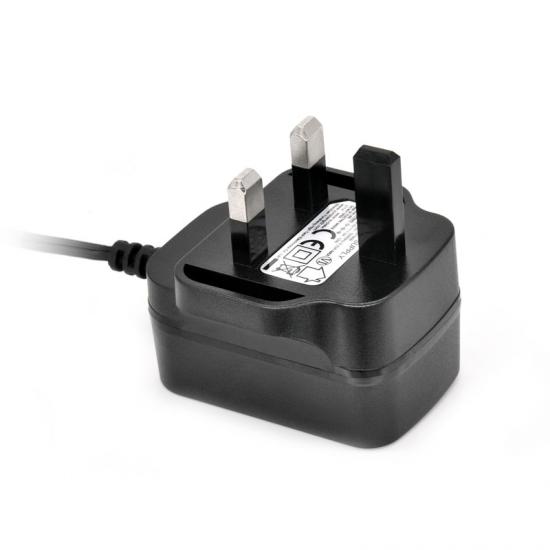

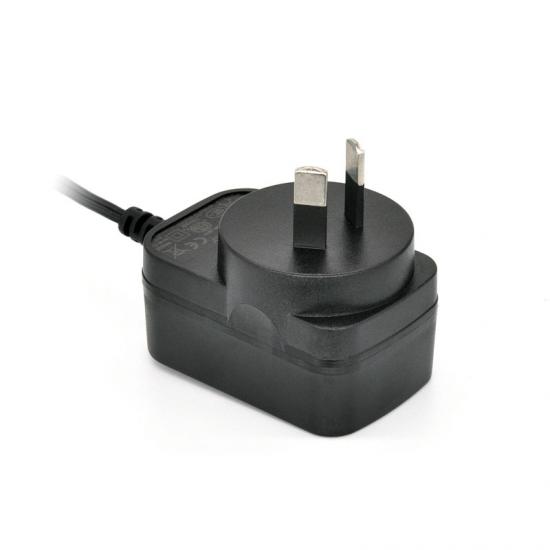

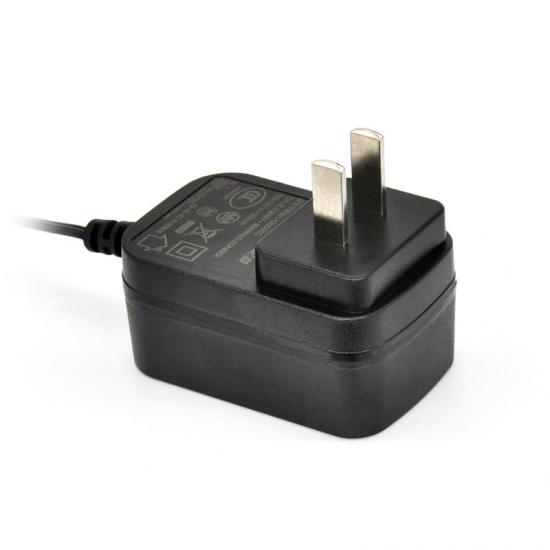

12V2A UL Power Supply Adapter
High quality stabilized AC DC plug in US/EU/AU/UK power supply adapter in very compact design. AC power adapter works with input voltages of 100 – 240Vac,with 1.2m/1.5 m DC cable which is terminated by a center-positive, 5.5 × 2.1 mm barrel connector. Even when no load is applied,our plug in switching power supply still suitable for LED products,printer etc. Basic protection for power supply including over voltage, short circuit and over current protection.
Product Specification:
| Product Name: |
12V2A 24W AC Charger Adapter |
|
Input voltage range: |
100-240V |
|
Input frequency range: |
47-63Hz |
|
Output voltage: |
12V |
| Output current:3 |
2A |
|
AC Plug: |
CCC/PSE/US/EU/AU/UK/KC plugs |
|
DC cable: |
1.2/1.5M/1.8M/2M/3M/5M etc; UL2468/UL 2464/UL1185 |
|
DC jack: |
5.5*2.5mm;5.5* 2.1mm and other option |
|
Color: |
black/white |
|
Surge: |
1KV-6KV |
|
Efficiency: |
DOE VI |
|
Certifications: |
CCC,UL,ETL,FCC,CE,GS,SAA,KC,PSE,ROHS,REACH |
|
Working temperature: |
-10°C ~ +50°C |
|
Storage Temperature: |
-20°C ~ +70°C |
|
Size: |
68mm*42mm*31mm |
9 Kinds Of Protections For Our 12V2A Adapter:
***Over Voltage Protection
***Over Current Protection
***Overload Protection
***Overpower Protection
***Over Temperature Protection
***Short Circuit Protection
***lightning Protection
***Overcharge Protection
***Magnetic Field Protection
Application Of 24W Power Supply:
Our switching power supply wall-mounted adapters can be applied to laptops, TV boxes, routers, Bluetooth speakers, aromatherapy diffuser, security cameras, LED stripes, robot vacuum cleaners, etc.
Our Services:
26 years experience of AC DC switching power supply industry
Free samples are available
OEM ODM services are available
Fast response within 24 hours
Full technical support before and after sales
CCC,UL,ETL,FCC,CE,GS,SAA,KC,PSE, ROHS compliance
Company Information:
Shenzhen Yunsheng High Tech Electronics Co.,Ltd.is a 26-years professional manufacturer of AC DC switching power supplies in Shenzhen,China.
-Since 1995
-More than 4500 clients from all over the world
-We have our own industry park which is more than 16000M2
-Global certifications,ISO 9001 and ISO14001 certify factory
-Our power adapters are widely used by laptop,TV box, router, bluetooth speaker,security camera,LED stripe,robot vacuum cleaner,aromatherapy diffuser etc.
Our Certificates:
Our certifications including:
CCC,CQC -- for Chinese market
UL,cUL,ETL,cETL,FCC,DOE VI -- for USA and Canada market
CE,GS,UKCA,ROHS,REACH,ERP VI -- for European Union and UK market
SAA,C-TICK,RCM -- for Australia and New Zealand market
KC,KCC -- for Korean market
PSE -- for Japanese market
FAQ:
Q1: Are you a factory or trading company?
A1: We are a 26-years professional AC DC power supply factory.
Q2: Can you offer OEM/ODM service? Can I have our own logo on the adapters?
A2: OEM/ODM is acceptable. As for logo, we can mark your logo on the label by laser or printing.
Q3: May I get samples from you?
A3: We can offer 1-3 free samples for you,while you only need to pay for the freight.
Q4: What is the MOQ?
A4: Normally,our MOQ is 1000pcs/item.
Q5: What payment terms do you offer?
A5: We accept Paypal and T/T as payment.
Q6: What is the warranty of your products?
A6: We offer 1-year-warranty. If the products do not work in the warranty period, please let us know them in detail and show us the relative pictures or videos, we will offer after-sale service according to the situation.
