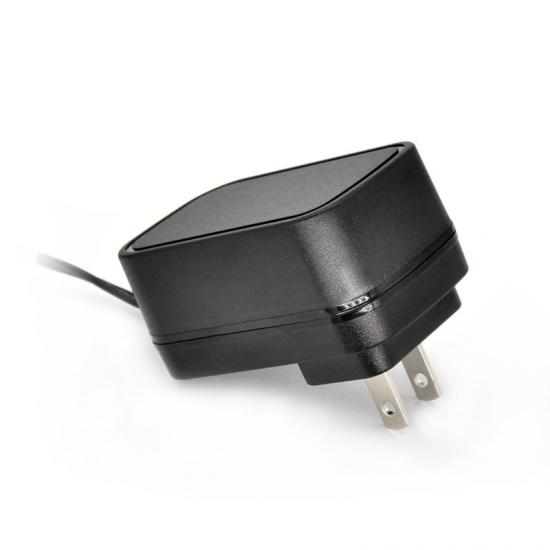

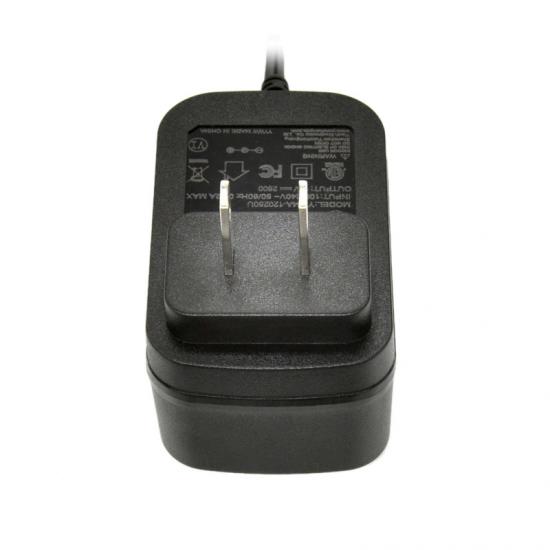

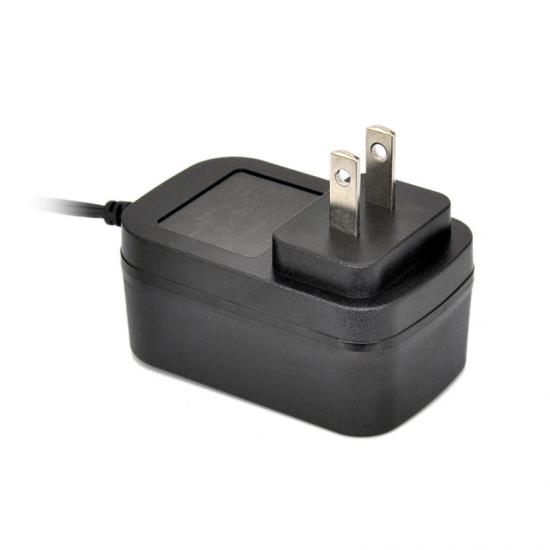

12V 2A US Plug Switching Power Supply

Private mold 12V 2A US plug switching power supply,all material meet ROHS2.0 and REACH standard. Very compact sized 68*42*31mm,portable and light.

  • Item NO.:

    YS04A-120200U
  • Payment:

    30% deposit,70% before delivery
  • Product Origin:

    China
  • Color:

    Black or White
  • Shipping Port:

    Yantian
  • Lead Time:

    20-30days
  • Order(MOQ):

    1000pcs
  • Product weight:

    110g

12V 2A US Plug Switching Power Supply

--Our own designed tooling,pure PC flame resistant housing
--12V 2
A US plug with UL,cUL,ETL,cETL,FCC certifications

--Plug in US power supply,meet DOE VI energy efficiency standard
--24W Plug In US power adaptor widely used for LED lighting industry




Product Specification:

Product Name 12V 2A US Plug Switching Power Supply
Input voltage range:
100-240V
Input frequency range:
50-60Hz
Output voltage:
12V
Output current:
2A/2000MA
AC Plug:
CCC/PSE/US/EU/AU/UK/KC plugs
DC cable:
1.2/1.5M/1.8M/2M/3M/5M etc; UL2468/UL2464/UL1185
DC jack:
5.5*2.5mm,Micro USB or other options
Color:
black/white
Surge:
1KV-6KV
Efficiency:
DOE VI
Certifications:
CCC,ETL,FCC,CE,GS,SAA,KC,PSE,ROHS,REACH
Working temperature:
-10°C ~ +50°C
Storage Temperature:
-20°C ~ +70°C
Size:
68*42*31mm


LED Power Adaptor DC Jack Options:

***5.5*2.5*10mm

***5.5*2.1*10mm

***4.0*1.7*10mm

***3.5*1.35*10mm

***3.0*1.1*10mm

***2.5*0.7*10mm

More options as below pictures

Different DC Tip For AC DC Power Adapter

9 Protections Of Lighting Chargers:

***Over Voltage Protection
***Over Current Protection
***Overload Protection
***Overpower Protection
***Over Temperature Protection
***Short Circuit Protection
***lightning Protection
***Overcharge Protection
***Magnetic Field Protection

Power Adapter 9 Kinds Of Protection


Application Of AC DC Adapters

Our switching power supply wall-mounted adapters can be applied to laptops, TV boxes, routers, Bluetooth speakers, aromatherapy diffuser, security cameras, LED stripes, robot vacuum cleaners, etc.

Power Supply Applications



Our Services:

26 years experience of AC DC switching power supply

Free samples are available

OEM ODM services are available

Fast response within 24 hours

Full technical support before and after sales

CCC,UL,ETL,FCC,CE,GS,SAA,KC,PSE, ROHS,DOE VI compliance


Company Information:

Shenzhen Yunsheng High Tech Electronics Co.,Ltd.is a 26-years professional manufacturer of AC to DC power supplies in Shenzhen,China.

-Since 1995

-More than 4500 clients from all over the world

-We have our own industry park which is more than 16000M2

-Global certifications,ISO 9001 and ISO14001 certify factory

-Our power adapters are widely used by laptop,TV box, router, bluetooth speaker,security camera,LED stripe,robot vacuum cleaner,aromatherapy diffuser etc.

Power Adaptor Company Information



Our Certificates:

Our certifications including:

CCC,CQC -- for Chinese market

UL,cUL,ETL,cETL,FCC,DOE VI -- for USA and Canada market

CE,GS,UKCA,ROHS,REACH,ERP VI -- for European Union and UK market

SAA,C-TICK,RCM -- for Australia and New Zealand market

KC,KCC -- for Korean market

PSE -- for Japanese market

PD Charger Certifications



FAQ:

Q1: Are you a factory or trading company?

A1: We are a 26-years professional AC DC power supply factory.



Q2: Can you offer OEM/ODM service? Can I have our own logo on the adapters?
A2: OEM/ODM is acceptable. As for logo, we can mark your logo on the label by laser or printing.



Q3: May I get samples from you?

A3: We can offer 1-3 free samples for you,while you only need to pay for the freight.



Q4: What is the MOQ?

A4: Normally,our MOQ is 1000pcs/item.



Q5: What payment terms do you offer?
A5: We accept Paypal and T/T as payment.


Q6: What is the warranty of your products?

A6: We offer 1-year-warranty. If the products do not work in the warranty period, please let us know them in detail and show us the relative pictures or videos, we will offer after-sale service according to the situation.
